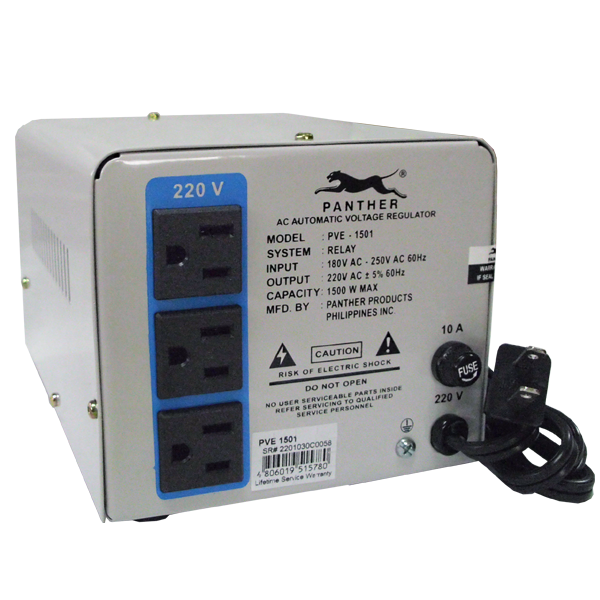

PVE 1500 / PVE 1501: 1500W Relay Type AVR, Output 220V AC
₱4,400
Technical Specification
- Max. Capacity: 1500 Watts
- Input: 180V AC – 250V AC 60Hz
- Output (+/- 5%): 220V AC 60Hz x 3
- System: Relay Type
- Response time: Within 1 second against +/-7% input voltage deviation
Features Include
- Three parallel outlets w/ grounding (3:220V)
- High and Low voltage protection
- Output Voltage Meter
- PVE 1500: Analog display for manual reading
- PVE 1501: LED screen display for easy visual indication
- 10A protection in case of overload
- With line/noise filter inside
- Metal casing: Powder-coated
- Lifetime Service Warranty
Product Details
The Panther Automatic Voltage Regulator provides necessary protection for your appliances against voltage fluctuation. This allows your electronic equipment and appliances to perform better and last longer.
The PVE series is good when used for 220V AC appliances.
This product is suitable for general household and office appliances
Additional Warning / Disclaimer
Please consult  your equipment supplier and/or Panther to determine the appropriate product capacity you should purchase for your equipment. This is to avoid overload.
In case you have specific requirements, please inform us of your required specifications so we can provide a made-to-order quotation for you
sanie rose dizon –
may i ask if anong tamang size ng breaker need ko pra s avr pve 1500 haircon ko po is 1hp , 230v ,60hz 1ph
kasi 3days palang avr ko pumutok po fuse niya . thank u s sagot.
Panther Support –
Good day! If ang aircon niyo po ay 1 HP @ 230V, kulang po talaga ang PVE 1500 kaya pumuputok ang fuse. We would advise that you use the PVE 1500 elsewhere instead – note maximum capacity of the AVR is 1500 Watts.
Given your aircon specifications, please use ~2500 Watts AVR instead. Thank you!
oscar beniabon –
good evening po. ano ho ang tamang avr na kailangan ko sa window type ac na 1} 1.5hp, 230v, power data=1,210watts: 2} 0.60hp 220v inverter grade ac at saka 3} 0.50hp, 220v ac. ? bale 3 po lahat na aircon at 3 rin ang kailangan ko na avr para proteksyon sa low voltage. salamat po…
Panther Support –
Good day, based on our calculation, you would need the following AVR:
– 1.5 HP, 220V: 3500 Watts AVR
– 0.6 HP, 230V: 1500 Watts AVR
– 0.5 HP, 220V: 1500 Watts AVR
Having said that, we highly encourage you to check with the aircon supplier directly. As it’s possible the aircon requires smaller AVR capacity, depending on the aircon design efficiency.
Thank you!
Ann Seguin –
Good day po. Nakabili po ako ng panther 1500 VA 220v. Pwede ko po ba siyang gamitin sa 230v 60Hz ( refrigerator)? Salamat po
Panther Support –
Good day, siguraduhin na less than 1500 Watts ang refrigerator power consumption para hindi magoverload ang AVR. You can send us the following information so we can help you check (refrigerator power consumption, in amps or watts). Makikita niyo po ito sa nameplate ng refrigerator mismo. Thank you!
Ann Seguin –
Ito po yung details ng ref ko po. 230v-60Hz, rated current 1.2A, rated power input 70 watts, defrosting input 150 watts. Pwede na po ba yung nabili kong Panther 220v, 1500 VA? Salamat po
Panther Support –
Good day, given the refrigerator specs you provided, the PVE 1500 (Panther AVR 220v, 1500 VA) should be sufficient. Do note that this does not have the power-on-delay protection however (the model which has this is PVE 1500 D: https://panther.ph/product/pve-1500-d-relay-type-avr/).
Thank you for purchasing Panther, please let us know in case you have any questions.
Margie Cortez –
good day po, mron po ako PVE 1500 AVR n nkakonek s ref, minsan po napapansin ko nagfluctuate ung volt meter, ano po epekto nun s ref ko, klangan ko p po b ng surge protector aside from the AVR? tnx
Panther Support –
Good day, the relay type AVR takes ~1 second to regulate the voltage, hence why you see a slight fluctuation in the voltmeter. Rest assured, this should not have an effect on your refrigerator. However, if you notice this happening for longer than expected intervals, we would suggest taking a video and sending to us at pantherproduct@gmail.com for audio-visual assessment. We will then inform you if your AVR requires recalibration.
Note that the surge protector protects from extreme voltage surges, which is additional protection for your refrigerator regardless.
Hope this helps answer your question!
Well –
Hi, ask ko lang po if ano ang suggested AVR nyo sa freezer ko, i have two unit of this.
Rated voltage: 230v
Rated current: 0.7A
Rated Frequency: 60Hz
Rated Power input: 103w
Plan ko po sana isang AVR lng para sa 2 units of freezer. Thanks
Panther Support –
Good day, each of your freezer would require a 500 Watts AVR. If you want to plug 2 units into one AVR, then we would recommend PVE 1000 D: https://panther.ph/product/pve-1000-d-relay-type-avr/
Note the following:
1. We recommend you get an AVR w/ power on delay, as equipment running on freon (incl. freezers) are particularly susceptible to post-brownout voltage surge damage
2. We highly encourage customers to purchase one AVR per freezer. As freezers are sensitive equipment with high power consumption, this is typically considered best practice. If you choose to purchase one AVR per freezer, we would recommend you purchase 2 qty of PVE 500 D: https://panther.ph/product/pve-500-d-relay-type-avr/
We hope this helps!
Rene nachor –
Good day. May nabili po ako na avr panther pve 1500 watts. Ask ko lang po. Humihina pa ren ang supply ng ref. Namin khit nakaconect na sa avr. Ung ilaw ng ref pansin mo humihina ung ilaw. Maliit lng na ref na gamit. Everytime na tumutunog ung avr. Kc my nagwewelding dito sa kapitbahay namin.ung tunog ng avr. Sabay din paghina hina ng ilaw sa ref. Normal po ba un
Panther Support –
Good day! Thank you for your inquiry. If napapansin niyo po ito during the times na nagwewelding ang kapitbahay ninyo, malaki ang likelihood na ang voltage supply na nakukuha ninyo ay sobrang baba sa oras na ito, at hindi nakakayanan ng AVR iakyat hanggang 220V. Malakas kasi talaga kumuha ng kuryente ang welding. Ang acceptable input voltage range ng PVE 1500 namin ay 180V – 250V AC. Ibig sabihin, kapag mas mababa sa 180V AC ang pumapasok na kuryente, inaakyat parin ng AVR ang voltage pero hindi aabot sa 220V sa sobrang baba ng input voltage na pumapasok.
Options:
1. If minsan lang magwelding ang kapitbahay niyo, o pansamantala lang dahil ginagawa ngayon. I suggest you turn off the refrigerator and other appliances during this time para mas sigurado, kasi kapag sobrang baba talaga ng voltage, nakakasira ito sa appliances in the long run
2. If laging nagwewelding ang inyong kapitbahay, check niyo kung gaano kababa ang voltage na nakukuha ninyo sa oras na ito. Pag alam na ninyo, pwede po kayo bumili ng AVR na mas malaki ang acceptable input voltage range. Halimbawa: Ang acceptable input voltage range ng aming PVR 1500 ay 150V to 250V AC.
Link to PVR 1500: https://panther.ph/product/pvr-1500-relay-type-avr/
Kapag may iba pa kayong tanong, please feel free to message us directly either through email pantherproduct@gmail.com o through FB https://www.facebook.com/pantherproducts/
Dennis Rayala –
Hi. I have this Panther AVR PVE 1500 Relay type and it has served me well for the past 4 years. It is connected to my refrigerator. Lately, we noticed a strong humming sound coming from the unit. It only lasts for a few minutes then it goes quiet again. Is there something wrong with my AVR? How long can I use it before it needs replacement? Thank you.
Panther Support –
Good day, the Panther AVR itself can last you for a lifetime. However, do note that AVRs require recalibration after a few years, and the relay inside is consumable so would need replacement after a few years as well, depending on the severity of the voltage fluctuation in your area. As part of Panther’s Lifetime SERVICE Warranty, you can easily get your device serviced. See link for details: https://panther.ph/panther-ecq-service-center/
We also suggest you take a video of your AVR (w/ humming sound) and send to pantherproduct@gmail.com w/ the following details so we can conduct an audiovisual assessment beforehand:
– Full Name
– Contact number (landline or cellphone). If outside NCR, please provide a cellphone number
– Panther Item Model
– Purchased From (Store where you purchased the item)
– Date Purchased (Month and Year)
– Issue encountered: The more information** you provide, the faster it will be for our technician to gain a full picture of the issue and diagnose accordingly.
We hope this helps!
Weshha –
Pwede po ba e charge ang laptop na Acer aspire 3 sa panther PVE 1500?
Panther Support –
Good day! Kindly note that the PVE 1500 is an AVR – hindi po siya nagchacharge ng laptop. What it can help you with is protecting your laptop from voltage fluctuations. Instead of plugging in the laptop directly to the power outlet when charging, you can plug into the AVR, which is in turn plugged in sa power outlet. Pag ganun, ang power na pangcharge sa laptop ay dadaan muna sa AVR, kung saan mareregulate ito, bago siya makakarating sa laptop ninyo.
We hope this helps!
Jan reynald –
Good day. May tanong lang po ako bumili po ako ng PVE 1500 D 220volts diba po ang output nya pero pag kinuhaan ko sya ng voltage sa tester ko 230volts mahigit reading ng tester ko po. May problima po ba ito? Thanks
Panther Support –
Good day! Kindly note that since this is a Relay Type AVR, hindi po talaga magiging exactly 220V ang output voltage. Instead, there would be a +/- 7% input voltage deviation within a ~1 second response time. The output voltage should still be within the acceptable range for normal appliances however. In fact, Meralco power supply typically ranges from 220V – 230V, so a 230V output voltage should be ok for your appliance.
**Note: 230V should be the max output voltage for the AVR. If you find that the output voltage being supplied to your appliance goes above 230V, kindly reach out to our Customer Service Center (wecare.panther@gmail.com) so we can help assess and conduct recalibration if needed.
If you want the output voltage to be exactly 220V at all times, you can check out our Servo Motor Type AVRs
We hope this helps!
Ernest –
What is the AVR size recommended for air frier 120 V , 1500 Watts??
Panther Support –
Good day! We would recommend the PVR 2000, which is an AVR with a built-in step down transformer (since your air fryer uses 120V, you would need a step down transformer to use it in the Philippines).
Link: https://panther.ph/product/pvr-2000-relay-type-avr/
We hope this helps!
Joeffrey Punongbayan –
Hi Panther, ask ko lang kung ano ang dimension ng PVE 1500. LxWxH. Thanks
Panther Support –
Good day! Please see dimensions of PVE 1500: 230 mm x 129 mm x 115 mm (L x W x H). We hope this helps!
Paolo D –
Is reaching 240V output voltage normal? My unit switches from 220 to 240 every few minutes.
Panther Support –
Good day! It would depend on the circumstances – for example, if your area reaches 240V, then the PVE would be regulating it down to 220V, which could explain why your unit is switching from 240V to 220V to 240V. If you’d like, you can bring in your unit for checking at our Panther Service Center. Simply contact wecare.panther@gmail.com or Viber 0998 954 3316. We hope this helps!
jamie –
I just purchase this avr and found out it has no power on delay, can I replace this unit with PVE 1500 D / PVE 1501 D: 1500W Relay Type AVR w/ Power on Delay, Output 220V AC?
panther admin –
Good day! Could we know where you purchased it from? If you purchased from us directly, please message us the details of your purchase (Date purchased, serial # of unit) at pantherproduct@gmail.com so we can assist you? Thank you!
jamie –
I purchased it from TrueValue.
panther admin –
Good day! Unfortunately, True Value does not carry the power on delay series, so it will not be possible to exchange at True Value. Is this a brand new unit, never been used?
jamie –
Yes, this is a brand new avr. We purchased it recently, 5th of August. Used once and currently powered off.
panther admin –
Good day! True Value does not carry PVE 1501 D model. We advise you to speak with the branch for their exchange/refund policies. Thank you!
JZ –
Hi, May mga tanong lang po ako,
Ano yung silbi ng “Bypass socket” sa mga AVR? Pede ko ba i-plug normally dun yung mga devices ko po?
Sa mga AVR’s po na may 1500VA output, ilang watts po talaga yun?
Yung mga sockets po ng AVR nyo po, for example itong PVE-1500, ilang watts po ang capacity nya per socket?
panther admin –
Good day! Wala pong bypass socket ang Panther AVRs. Ibig niyo po bang sabihin ay Bypass Switch? The Bypass Switch can be found on products with power-on-delay function (delays the return of power by 3-5 minutes after a power outage, to protect your appliance from power surge damage). Ang purpose ng bypass switch ay pwede niyo siyang pindutin kung hindi kayo makapaghintay ng 3-5 minutes dahil kailangan na ninyo gamitin ang appliance ASAP.
For PVE-1500, maaari pong magsaksak ng MAX 1500 watts per socket. Please make sure however that the total COMBINED consumption ng appliance na nakasaksak ay 1500 watts lamang. Halimbawa, kung 1500 watts na ang nakasaksak sa Socket 1, huwag niyo na po saksakan ang ibang sockets, dahil mag-ooverload ang AVR.
We hope this answers your question!
dhex –
Recommended AVR for 0.5 HP 230v for Non Inverter Aircon sana masagot
panther admin –
Good day Dhex! Based on your given specifications, please consider at least 2000 watts AVR or higher, for sufficient allowance.
Model: PVE 2001 D
Product link: https://panther.ph/product/pve-2001-d-relay-type-avr/
Hope it helps 🙂
dhex –
Recommended AVR for 0.5 HP 230v for Non Inverter Aircon sana masagot lagi kasing pumuputok ang fuse yung AVR ko na PVE500
panther admin –
Good day Dhex! Hindi po compatible ang capacity ng AVR sa wattage ng AC nila kaya lagi pong nasusunog ang fuse. Please consider at least 2000 watts AVR or higher, for sufficient allowance.
Model: PVE 2001 D
Product link: https://panther.ph/product/pve-2001-d-relay-type-avr/
Hope it helps 🙂
phadz –
Can I use AVR 1500w in my car sound system? or this AVR are for appliances only?
panther admin –
Good day phadz! May we ask if what the specification of the car sound system? Because Panther AVR will operate using AC while car sound system is DC. May we also ask if what’s the scenario that you need to use AVR with the car sound system? Hope this will help.
Harley –
Hi what are the dimensions of the pve-1501 and 1500. Considering it would be installed on the outdoor what will you recommend for the enclosure po ma’am/sir?
Hoping for your immediate response
panther admin –
Good day Harley! We only have PVE 1501 as of the moment. Dimension approximately 230x129x115mm (LWH) and it weighs 6kg. This is not recommend for outdoor use. We hope it helps.
