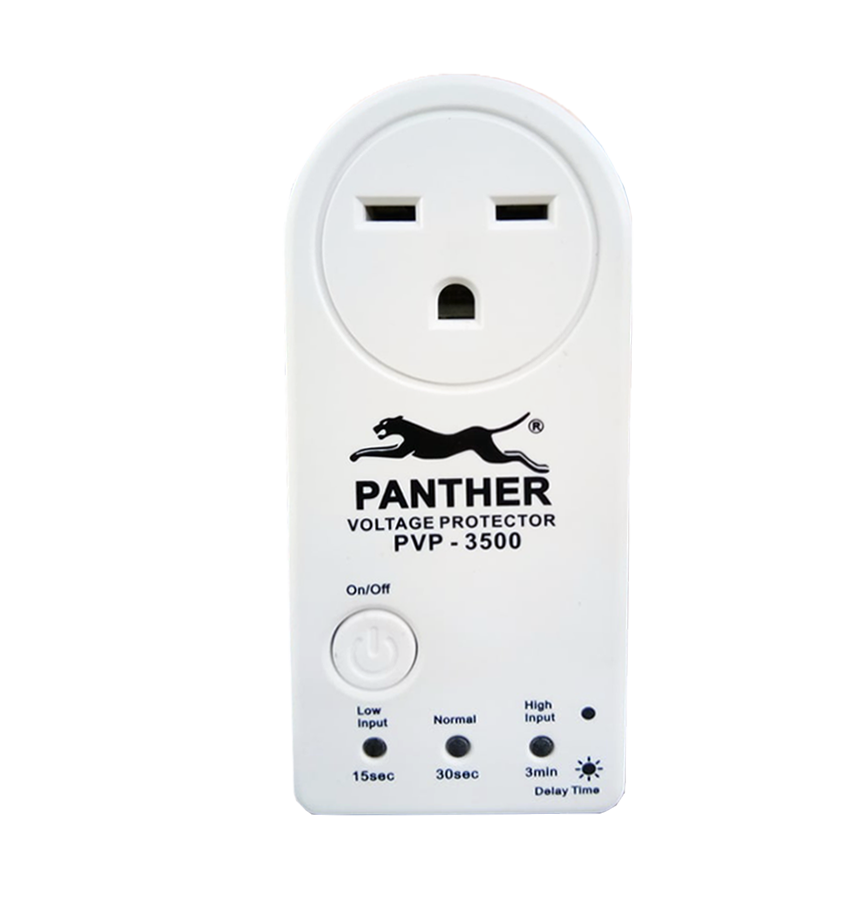

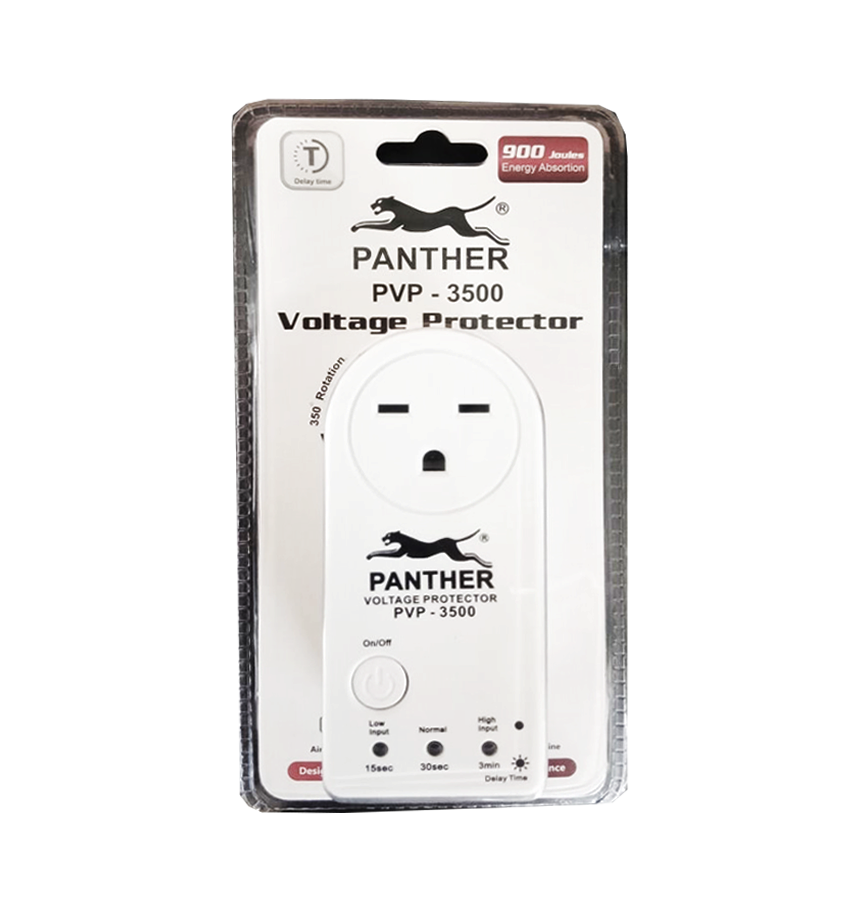

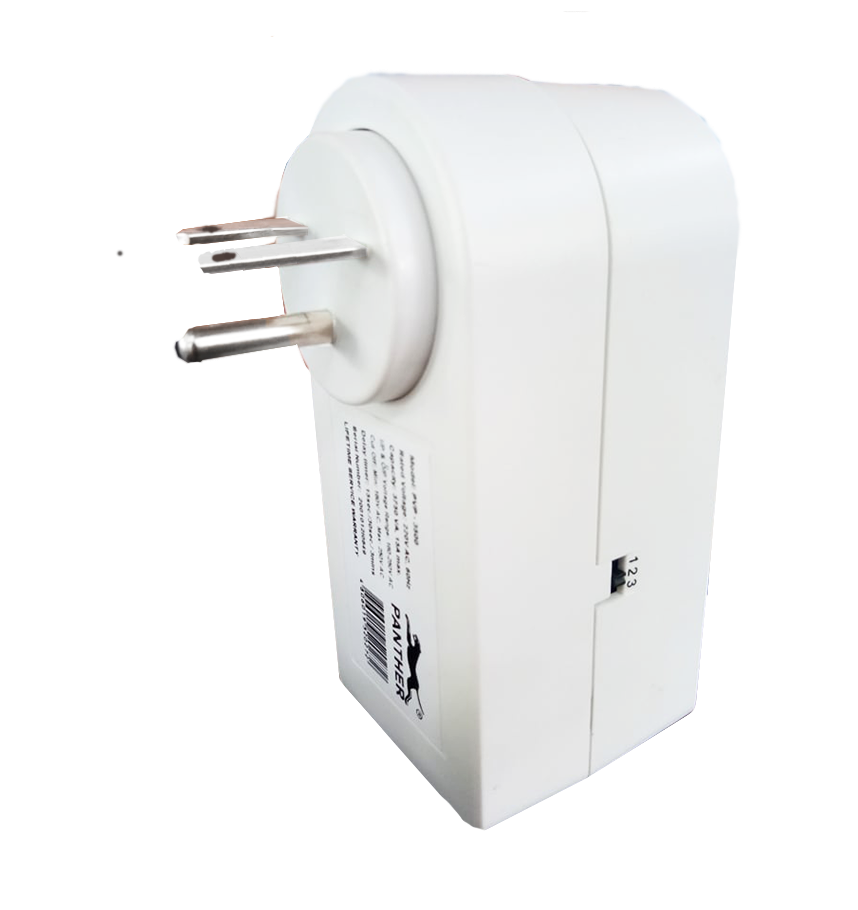

PVP 3500: Panther Voltage Protector 3750W w/ Power on Delay
₱1,250
Technical Specification
- Maximum power load: 3750 Watts
- Input and Output Voltage Range: 160V AC – 250V AC
- Voltage cut-off
- Min: 160V AC
- Max: 250V AC
- Delay response time: 15 sec./30 sec./3 mins
Features Include
- One aircon outlet w/ grounding, with ability to rotate from 0 to 350 degrees to save socket space
- On/Off output switch to save power
- Instantaneous AC Voltage variation detection resulting in load connection cut-off if input AC voltage is above 250V AC or below 160V AC, as well as re-connection once normalized
- Built-in Power on Delay of 15 sec./30 sec./3 mins. (protects your appliance from sudden surges in electricity after power interruption
- Built-in voltage surge protection (900 Joules)
- ABS Fireproof Plastic Housing
- Lifetime Service Warranty
49 in stock
Buy from LazadaBuy from ShopeeProduct Details
Safeguard your appliances by preventing power surges/voltage fluctuations from damaging them. In the event of high or low input voltage fluctuations which could affect the operation and longevity of your appliance, the Panther Voltage Protector will turn off the load connection automatically and will only reconnect after 15sec./30sec./3mins. once it recognizes the normalization of the input voltage to acceptable levels.
For detailed instructions on how to setup and use the Panther Voltage Protector, you can check out this article: How to Operate the Panther Voltage Protector
Additional Warning / Disclaimer
Please consult your equipment supplier and/or Panther to determine the appropriate product capacity you should purchase for your equipment.
GUILLERMO ARAWIRAN ACIBIZ –
I bought a panther PVP 3500 but no output even with power.
Panther Support –
Good day! The PVP 3500 comes with power on delay. To protect your appliance from post-voltage power surge, the power on delay feature will prevent power from entering your appliance for the next 15sec/30sec/3mins (time setting by user). Could you check if after 3 minutes, the unit is now supplying output? Thank you, and we look forward to hearing back from you!
Solomon Wong –
Does this work with all sorts of window type aircon? My brand is Carrier Aura 1.5 HP.
Panther Support –
Good day! Yes, in terms of capacity that the PVP 3500 can support, it should. Kindly check if your Carrier Aura aircon plug will fit into the PVP outlet 🙂
Jester –
How many watts stnby mode for voltage protector
Panther Support –
Good day! Do you mean standby power consumption of the Voltage Protector when not in use (meaning no equipment plugged into the PVP)? Extremely minimal – since the Panther Voltage Protector simply passes through the power to the equipment itself.
Reynaldo Bulaclac –
Hindi na po ba kailangan i-on ang switch pagtapos ng power enteruption o brownout para gumana ang unit after 3 minutes delay
Panther Support –
Good day! If nakasaksak na ang PVP sa outlet bago mag power outage, pagbalik ng kuryente mag-automatic on na ang PVP at automatically hihintaying ang set power on delay bago niya papaganahin ang inyong appliance. Kaya, hindi na po kailangan i-manual on ang PVP switch pagkatapos ng power interruption.
Vyn –
Which hardware store is this available today? We’d like to buy one asap for our washing machine/dryer
Panther Support –
Good day! As of January 2022, the PVP 3500 is currently available at Welcome Home Depot (located in Del Monte QC) and in online stores. However, you can order from us directly and we can then ship to you within the day. You can reach our Sales team via Viber for faster processing of order: 0908 811 5438. We hope this helps!
Jovz –
Hi. Need help po. Bigla na lang na off yung arcon kahit hindi naman brownout using nitong product nyo. Many times na po ito nangyari.
Sinubukan ko naman i-reset pero laging blink na walang katapusan.
Plugin ko sa ibang outlest. Ganun pa din sa 2 units ko.
Sinubukan ko i-uplug tapos plug in pero steady nka ON pa din yumg LED light nya. 30 mins na lang wala padin power
Panther Support –
Good day! Thank you for reaching out! Possible po na your area is experiencing very high (>250V AC) or very low (<160V AC) voltage, so the PVP is cutting off power to your appliance for its protection. But, for us to provide a more correct assessment, kindly video the PVP when this is happening and either send to our FB messenger (https://www.facebook.com/pantherelectrical/) or our Service Center’s email (wecare.panther@gmail.com) so we can better assist you.
CJ –
Hi ung PVP -3500 pwede ba sa coffee machine with 170 V and 1700 watts consumption?
Panther Support –
Good day! Bakit po 170V ang coffee machine? Is this because the power voltage in your area is low? If so, we would recommend an AVR to provide 24/7 voltage regulation protection for your coffee machine. Also, kindly note that the PVP 3500 outlet is for aircon plugs, so you would have to check also if your machine plug is compatible.
Ced –
Okay po ba ito sa palaging may power outage?
Panther Support –
Good day! Yes, ok po siya dahil meron siyang power-on-delay na nagproprotect sa appliances mo from voltage surge na madalas mangyari kasunod ng power outage.
Carlo Banca –
Good day po, meron po ba kayo ganito na circuit breaker type? Yung split type aircon po kasi namin ay sa external unit ang power source, meron po sarili breaker na nasa loob ng outdoor/weatherproof panel box. Hinde na po kasi kakasya dun sa panel box kapag maglalagay pa ng socket at plug para ma-install ito, mas maganda sana kung ipapalit na lang sya mismo dun sa circuit breaker. Salamat po.
Panther Support –
Good day! Unfortunately, we currently do not offer this type of product. We hope to serve you in the future however.
Jen –
Pwede ba ito sa split-type aircon 1.5HP?
Panther Support –
Good day! Yes, pwede po ito sa split type aircon na 1.5 HP.
tinj –
kailangan po ba ioff itong power on delay kapag papatayin ko rin ang aking aircon? or pwede ko po iwan lang siya naka on 24/7 kahit d ko gamit ang aking ac. salamat po
Panther Support –
Good day! Pwede niyo po i-off, pero pwede rin naka-on 24/7. Wala naman pong magiging problem either way, although we recommend turning it off so no electricity flows through it when it’s not in use.
tinj –
nagtry po ako ioff siya ng 8hrs pero pag balik ko po after ng time frame na yun ay nagbblink po siya ung 3 light indicator po.normal po ba un?
Panther Support –
Good day! Yes, normal pa iyon. Kapag naka-off po ang PVP 3500, the 3 light indicators will blink po. We hope this helps!
alain –
hi, do i need to turn it off pagaalis kami ng bahay or ok lang naka on?
Panther Support –
Good day! Ok lang naka-on as it uses minimal electricity if the appliance plugged in is turned off.
donj –
nag trip off po sya indicating high voltage. hindi po ba sya kusang babalik kapag normal na ang voltage? need po talaga i-off / on sya?
Panther Support –
Good day! Kusa po dapat mag-normal mode ang PVP 3500 once bumalik sa 160v to 250v range ang input voltage. Kindly note that there will be a 3-5 minutes time delay however, bago siya babalik sa normal mode. We hope this helps! If you have any questions, please do let us know or email wecare.panther@gmail.com. Thank you!
Jhongski –
Hi, kaya nya po ba ang biglaang lightning strike?
panther admin –
Good day, please note that this does NOT protect from lightning strikes, as that would require ~millions of joules protection. The best protection from a direct lightning strike would be to turn off and unplug all appliances during a lightning storm. We hope this helps!
Dolores Amor –
1) what model do i need for a 12kg with inverter washing machine.
2) Can I use a plug adapter for it? 3) what model do i need for a 2hp with inverter split type aircon?
panther admin –
Good day, Dolores! What equipment protection feature are you looking for your washing machine? For your AC, we would recommend PVP 3500, because this is specifically designed for air-conditioners. The PVP 3500 provides power-on-delay protection, surge protection, as well as high/low voltage protection. We hope this helps! Please reach out to us if you have any other questions!
Les –
ok po bang naka plugin lang 24/7? I noticed mainit sya kahit naka turn off.
panther admin –
Good day Les! Pwede nyo po ito i-unplug as it consume minimal electricity when plug. If manageable naman po ang init, it shoulde be okay. Hope it helps.
mau –
pde po bang tanggalin yung 3rd prong po niya ,kasi 2 holes lang po yung outlet ko
panther admin –
Good day Mau! Not recommended po. Much better to buy adapter plug po. Hope it helps.
Korina –
Hi, after magbrownout and magflicker ng paulit ulit, tinanggal muna namin yung AC na nakakabit sa voltage protector. Pagbalik namin sa saksakan nya, blink lang sya ng blink nonstop, hindi nabubuhay ang AC namin. After matapos yung naka set na delay in seconds, uulit sya ulit sa pagblink.
panther admin –
Good day Korina! Can you send us a video of your concern? Kindly message us on Viber: 09989543316 or email us on pantherproduct@gmmail.com
