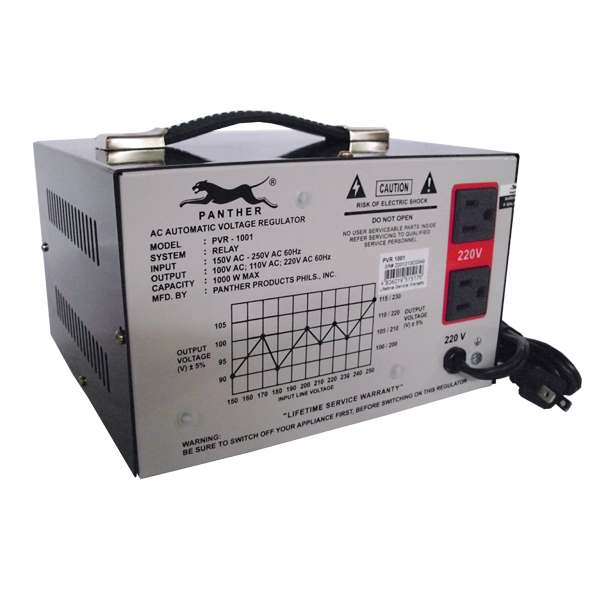

PVR 1000 / PVR 1001: 1000W Relay Type AVR w/ Step Down Transformer
₱5,500
Technical Specification
- Max. Capacity: 1000 Watts
- Input: 150V AC – 250V AC 60Hz
- Output (+/- 5%): 100V AC, 110V AC & 220V AC 60Hz x 3
- System: Relay Type
- Response time: Within 1 second against +/-7% input voltage deviation
Features Include
- Three universal outlets (1: 100V, 1: 110V, 1: 220V), Two parallel outlets w/ grounding (2:220V)
- High and Low voltage protection
- Output Voltage Meter
- PVR 1000: Analog display for manual reading
- PVR 1001: LED screen display for easy visual indication
- 6A Fuse protection in case of overload
- Metal casing: Powder-coated
- Lifetime Service Warranty
Product Details
The Panther Automatic Voltage Regulator provides necessary protection for your appliances against voltage fluctuation. This allows your electronic equipment and appliances to perform better and last longer.
With a built-in transformer, the Panther PVR series provides great value for money since not only does it protect your appliance from voltage fluctuations, but it is also able to convert the input voltage of 220V AC into the required voltage requirements of your appliance (100V AC, 110V AC, 220V AC) without needing to purchase a separate transformer.
This product is suitable for general household and office appliances.
Additional Warning / Disclaimer
Please consult your equipment supplier and/or Panther to determine the appropriate product capacity you should purchase for your equipment. This is to avoid overload.
In case you have specific requirements, please inform us of your required specifications so we can provide a made-to-order quotation for you
Jun Endaya –
meron akong PVR-1000 , yun input voltage ko 229 at minsan 230 pero yun output ganun pa rin madalas mag click yun relay , papano gagawin maingay panay click , pede ba babaan output voltage say 220V at yun voltmeter ayaw na gumalaw, naranasan ko ito ngayon lang covid
Panther Support –
Good day Sir! Thank you for your inquiry.
Pwede niyo po ba video ang PVR-1000, kung saan makita po namin ang input voltage (based sa testing ninyo) sabay makita rin sa video ang output voltage na ipinapakita sa voltmeter ng PVR-1000? Paki-email po ang video to pantherproduct@gmail.com , at paki-indicate ang inyong contact number, so we can give you a preliminary assessment based on the video. In case of any other concern, you can email us directly or through the website contact form: https://panther.ph/message-us/?concern=repair-inquiry
Keep safe po!
Paul –
hi,
Meron ba kayo authorized service center sa iloilo City? thanks
Panther Support –
Hi Sir, we don’t have an authorized service center in Iloilo. To get it serviced, you can either bring it to the store you brought it from (e.g., Ace, Handyman) and they will ship to us – but this will take time. Or you can ship to us directly. For more details, you can check this step-by-step guide: https://panther.ph/lifetime-service-warranty/
Alternatively, you can also message us directly: https://panther.ph/message-us/?concern=repair-inquiry
Abbie Lara –
Hello po.
Mayron po kaming model na ginagamit, PVR 1000: 1000W Relay Type AVR w/ Step Down Transformer. Matagal na po ito sa amin.
GInagamit ko po iyung 110 volts na hub po, for an old VCR/ Mini DV tape player. But napansin ko po na may buzz sound po na nanggagaling sa unit nung ginamit ko po ito ulit. It lasts between 3-4 seconds yung buzz na medyo malakas kasi may ground nang onti yung floor kapag nag buzz/ground sound po yung unit.
tapos minsan nagfa fluctuate yung screen monitor na gamit ko at nakasaksak po sa 220 volts ito kapag nagba buzz sound, for a second. And then mawawala.
Is this normal or may sira na po ba iyung unit? Thank you po.
Panther Support –
Good day! Thank you for your message. The normal sound you should hear would be a clicking sound, which is an indication of the AVR regulating the voltage during periods of voltage fluctuation.
Which item emits a buzzing sound? The AVR or the VCR player? We hope to resolve this with you. Could you email us a video of what you’re experiencing at pantherproduct@gmail.com so we can provide a better diagnosis?
Jose Antonio –
Hi, I need to plug several devices to something like this (computer w/900w power supply, A lot of video game consoles, TV, Speakers, Amplifier, etc).
1. Can I plug an extension chord into this? What kind of extension chord?
2. Does this have a surge protector as well, or do I need ti get one still?
Thanks.
Panther Support –
Good day,
We would recommend you purchase an extension cord w/ surge protection – here’s our full list of Voltage Surge Protectors for you to choose from: https://panther.ph/product-category/appliance-protection/voltage-protection/extension-cords-w-voltage-surge-protector/
You may plug an extension cord into the AVR to increase the number of outlets you can use. However, please take into account that the maximum capacity of PVR 1000 is 1000 Watts. Kindly make sure the total power consumption of the appliances you plug in will not exceed 1000 Watts, or else the AVR will overload.
Thank you!
Sandy Masaoy –
Itatanong ko lng po ung nabili kung PVR 1000,,bkt minsan during operation with my appliance, minsan lumagalitik ung relay nya, normal lang po ba un? I need your immediate response…thank you and godbless
Panther Support –
Good day! Every time you hear a click from your relay-type AVR, that’s the sound of the relay switching from one voltage range to another – this occurs when the AVR is forced to regulate the voltage supply.
So if you hear “noise” from your AVR, it simply means it’s doing its job well and your appliance is being protected from an instance of voltage surge/fluctuation. However, if the sound is continuous/nonstop, please contact us so we can provide an assessment on the item.
We hope this answers your question!
Frank –
hello, pwede po ba na ako ang mag palit nung fuse ng AVR o kailangan ipa service?
Panther Support –
Good day! Pwede niyo po palitan mag-isa ang fuse. Kindly make sure tamang fuse po ang ipalit ninyo. For PVR 1000, the fuse you should replace it with is: Glass Fuse 30mm 6A. These should readily be available in hardware stores (e.g. Ace, DIY). Otherwise, you can also purchase through our Shopee store: https://shopee.ph/5-pcs.-High-Grade-Glass-Fuse-30mm-(0.8-Ampere-to-25-Ampere)-i.226793333.7639362040
Reynaldo Fontanoza –
Hi! Ano po ba ang maximum (watts) power output sa 110v ng Panther PVR 1000:1000W Relay Type AVR w/ Step Down Transformer?
Panther Support –
Good day! 1000 Watts po 🙂 If you have additional questions, feel free to message us through our contact form as well: https://panther.ph/message-us/
John Cleo B. Gonzales –
My Kalorik Vertical Rotisserie po ako na galing USA. DGR 31031, 120v-60Hz 1,420 Watts at Instant Pot Viva Series na 1,200 Watts. Ano po ang dapat kong mabili na voltage transformer para sa dalawang appliances ko po na galing USA. Yung pinaka mura po sana na compatible po sa 2 appliances? Isa lang po sana na voltage transformer na puede gamitin sa 2 appliances.
Panther Support –
Good day! We need more information before we can provide a recommendation. Feel free to email your response to our questions below to pantherproduct@gmail.com
1) Do you plan to use the Rotisserie / Instant Pot continuously (e.g. for commercial use)? Or will you only use it from time-to-time? If you plan to use it for commercial use, then we would recommend you purchase an AVR w/ built-in step-down transformer (PVR series). However, if you’re only using it for personal use intermittently, then you can just consider purchasing a Step Down transformer as these are cheaper than the PVR.
2) Are you planning to use the Rotisserie and the Instant Pot at the same time? Or you’ll only use it one at a time. This will affect the capacity of the AVR or Transformer you would require.
3) Are the wattage you’ve provided at Maximum Watts? Or Average Watts?
Thanks, we look forward to hearing back from you.
Emer –
meron ba kayong frequency converter? appliance ko ay 220V, 50hz. gusto ko sana magamit eto sa 60 hz.
Panther Support –
Good day! We currently do not sell frequency converters 🙂
Vincent –
How to replace 6A fuse? 1000w relay type avr
panther admin –
Good day Vincent! On the front panel where it says “fuse”, push inward and downward to let the latch, and then release your finger. The fuse holder cap should spring out. The fuse you should replace it with is: Glass Fuse 30mm 6A. These should readily be available in hardware stores (e.g. Ace, DIY). Otherwise, you can also purchase through our Shopee store Hope it helps.
Reywin –
Nakabili kami ng 12 cu ft inverter ref with specs 230V 60 hz
Rated current 1.3A,
Input power 140W
Defrost power 160
Lamp 2.4 W
Ilang watts kaya na AVR ang advisable?. TIA
panther admin –
Good day Reywin! Based on your given specifications, please consider at least 1000 watts AVR or higher, for sufficient allowance. Mode: PVE 1001 D . Hope it helps.
